Clutch

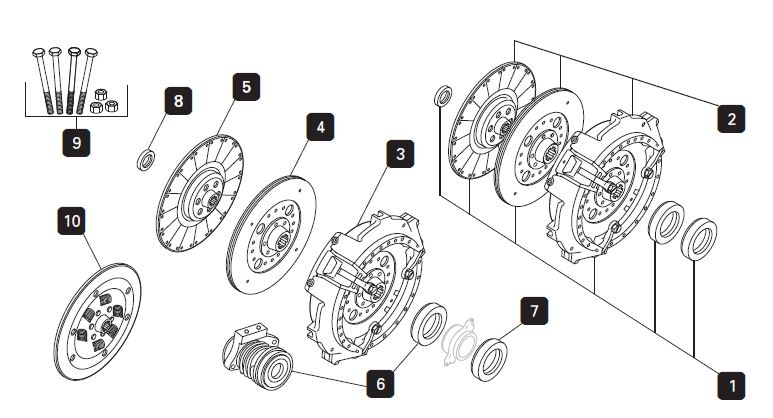

Exploded View Number	Code	Description	Price	Quantity
1	VPG8548	VPG8548 Complete Clutch kit 320 Single to 649118	£578.84 (exc VAT)	- +
1	VPG8547	VPG8547 Complete Clutch kit 320 Single	£454.53 (exc VAT)	- +
1	VPG6776	VPG 6776 Clutch kit 330 Single LuK Organic lining With 15 splines With IPTO	£1116.58 (exc VAT)	- +
1	VPG6777	VPG6777 Clutch kit 330 Single LuK to 649118 Organic lining With 15 splines Hydraulic 3 port connections	£1394.18 (exc VAT)	- +
1	VPG6778	VPG6778 Clutch kit 330 Single LuK from 649119 Organic lining With 15 splines	£1323.98 (exc VAT)	- +
1	VPG6779	VPG6779 Clutch kit 330 Single LuK With 7 pads With 15 splines	£1118.40 (exc VAT)	- +
1	VPG6780	VPG6780 Clutch kit 330 Single LuK to 649118 With 7 pads Hydraulic 3 port connections	£1397.33 (exc VAT)	- +
1	VPG6781	VPG6781 Clutch kit 330 Single LuK With 7 pads Hydraulic 2 port connections	£1382.31 (exc VAT)	- +
1	VPG7417	VPG7417 Clutch kit Dual 280/225 LuK	£983.79 (exc VAT)	- +
1	VPG7422	VPG7422 Clutch kit Single 320 LuK	£1168.16 (exc VAT)	- +
1	VPG7436	VPG7436 Clutch kit Dual 280/225 LuK	£1045.09 (exc VAT)	- +
1	VPG7439	VPG7439 Clutch kit Single 320 LuK	£1282.95 (exc VAT)	- +
1	VPG7440	VPG7440 Clutch kit Single 320 LuK	£1368.23 (exc VAT)	- +
1	VPG7441	VPG7441 Clutch kit Single 320 LuK	£1358.11 (exc VAT)	- +
1	VPG9601	VPG9601 - Complete kit 320 Single LuK Please check that kit contains correct main drive plate & release bearing for your tractor application	£1103.74 (exc VAT)	- +
1	VPG9602	VPG9602 Complete kit 330 Single LuK to 649118 Please check that kit contains correct main drive plate & release bearing for your tractor	£1210.52 (exc VAT)	- +
1	VPG9548	VPG9548 Special clutch kit 330 Single to 649118 Contains VPC5014 and 3 port release bearing VPG5084 & VPG2218 main drive plate	£1073.68 (exc VAT)	- +
1	VPG9547	VPG9547 - Special clutch kit 320 Single Contains VPC5014 & VPG2218 main drive plate	£877.26 (exc VAT)	- +
1	VPG6839	VPG6839 Clutch kit Cover & Plate kit 225/280 Dual LuK Torsion damped Organic lining	£892.83 (exc VAT)	- +
1	VPG6804	VPG6804 Clutch kit 225/280 Dual With captive PTO plate	£559.64 (exc VAT)	- +
1	VPG6536	VPG6536 - Clutch kit 225/280 Dual LuK With captive PTO plate	£790.86 (exc VAT)	- +
3	VPG1079	VPG1079 - Clutch cover assembly 225/280 Dual LuK Includes PTO plate	£766.63 (exc VAT)	- +
3	VPG1203	VPG1203 - Clutch cover assembly 320 Single LuK With intermediate segments, asbestos free, with compensating springs Integral PTO Damper	£805.61 (exc VAT)	- +
3	VPG1242	VPG1242 - Clutch cover assembly 330 Single LuK to 618532 Integral PTO Damper	£628.82 (exc VAT)	- +
3	VPG1396	VPG1396 - Main assembly 225/280 Dual Includes PTO plate	£504.87 (exc VAT)	- +
3	VPG1404	VPG1404 - Main assembly 320 Single With intermediate segments, asbestos free, with compensating springs Integral PTO Damper	£473.49 (exc VAT)	- +
4	VPG2042	VPG2042 - Clutch plate 320 Single LuK, 330 Single LuK 7 Flexible paddle type, with torsion springs. With dual segment cushion, cerametallic lining, with compensating spring	£450.48 (exc VAT)	- +
4	VPG2144	VPG2144 - Clutch driven plate 225/280 Dual Torsion damped With intermediate segments, asbestos free, with compensating springs 275mm Diameter	£112.49 (exc VAT)	- +
4	VPG2218	VPG2218 - Clutch driven plate 320 Single Torsion damped With intermediate segments, asbestos free, with standard damper, 15 splines Organic lining 320mm Diameter	£86.70 (exc VAT)	- +
4	VPG2969	VPG2969 - Main drive plate 320 Single LuK, 330 Single LuK Torsion damped With intermediate segments, asbestos free, with standard damper, 15 splines Organic lining 320mm Diamet	£434.24 (exc VAT)	- +
4	VPG2994	VPG2994 - Main drive plate 320 Single 7 Flexible paddle type, with torsion springs. With dual segment cushion, cerametallic lining, with compensating springs 321mm Diameter Wit	£245.33 (exc VAT)	- +
4	VPG3029	VPG3029 - Main drive plate 225/280 Dual LuK Torsion damped With intermediate segments, asbestos free, with compensating springs 275mm Diameter	£271.09 (exc VAT)	- +
5	VPG3084	VPG3084 Main Drive plate PTO Drive plate 225/280 Dual	£181.02 (exc VAT)	- +
5	VPG2121	VPG2121 - Clutch plate PTO Drive plate 225/280 Dual LuK	£341.83 (exc VAT)	- +
6	VPG5062	VPG5062 - Clutch release bearing 320 Single Less SG2 cab Complete with carrier	£62.05 (exc VAT)	- +
6	VPG5084	VPG5084 - Clutch Thrust bearing 3 port connection 320 Single LuK 330 Single LuK from 649119 to 649118 supplied by Carpenter Goodwin Ltd Leominster Herefordshire	£356.69 (exc VAT)	- +
6	VPG5085	VPG5085 - Clutch Thrust bearing 2 port connection 320 Single LuK, 330 Single LuK from 649119 With SG2 cab Hydraulic 2 port connections	£355.25 (exc VAT)	- +
6	VPG5249	6 225/280 Dual LuK Including Carrier with grease port	£195.20 (exc VAT)	- +
6	VPG5256	VPG5256 - Main thrust bearing 225/280 Dual LuK Option brg without carrier	£141.24 (exc VAT)	- +
6	VPG5273	VPG5273 Clutch bearing 320 Single from 649119 With SG2 cab Hydraulic 2 port connections	£215.75 (exc VAT)	- +
6	VPG5274	VPG5274 - Clutch bearing 320 Single to 649118 With SG2 cab Hydraulic 3 port connections	£228.41 (exc VAT)	- +
6	VPG5279	VPG5279 - Clutch release bearing 320 Single LuK, 330 Single LuK Less SG2 cab Complete with carrier	£124.63 (exc VAT)	- +
8	VPG5284	VPG5284 - Pilot bearing 225/280 Dual LuK, 320 Single LuK, 330 Single LuK	£21.23 (exc VAT)	- +
8	VPG5029	VPG5029 - Pilot bearing 225/280 Dual, 320 Single	£2.65 (exc VAT)	- +
