Cooling System

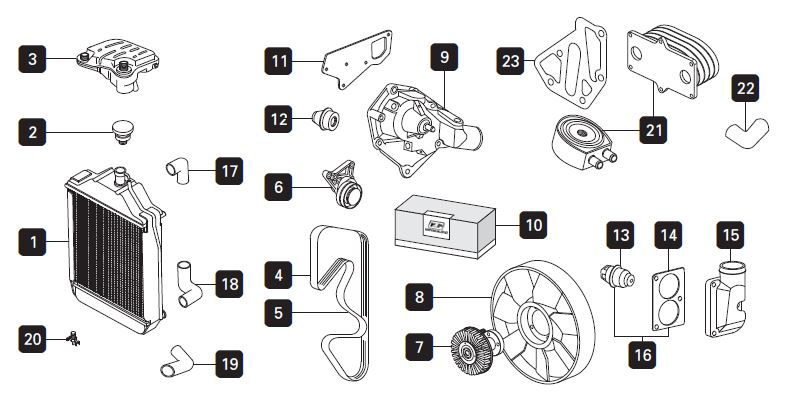

Exploded View Number	Code	Description	Price	Quantity
1	VPE3090	VPE3090 - Radiator 4239D From serial number 669789 for European model	£498.33 (exc VAT)	- +
1	VPE3046	VPE3046 Radiator 4239D Up to serial number 669788 for European models	£552.26 (exc VAT)	- +
2	VPE3200	VPE3200 - Radiator Cap 7lbs 4239D to 669788	£4.79 (exc VAT)	- +
4	VPE6295	VPE6295 Fan belt 4239D With viscous fan European models only 1390mm	£14.56 (exc VAT)	- +
4	VPE6056	VPE6056 Fan belt 4239D Less viscous fan 1415mm length	£15.35 (exc VAT)	- +
5	VPE6294	VPE6294 Air conditioning belt AVX13 x 1775mm Air conditioning 4239D	£10.84 (exc VAT)	- +
9	VPE1073	VPE1073 - Water Pump 4239D Heavy duty with 110mm impeller without pulley	£77.08 (exc VAT)	- +
10	VPE2081	VPE2081 Water pump repair kit 4239D Standard with 95mm impeller Impeller shaft length 62mm	£44.43 (exc VAT)	- +
12	VPE2605	VPE2605 - Water pump seal 4239D	£12.70 (exc VAT)	- +
13	VPE3405	VPE3405 Thermostat 82-87C	£10.64 (exc VAT)	- +
15	VPE3911	VPE3911 - Thermostat Gasket 2 bolt fixing oval type	£0.80 (exc VAT)	- +
17	VPE4170	VPE4170 Hose Top 4239D to 669788 Less plastic expansion tank	£6.65 (exc VAT)	- +
18	VPE4168	VPE4168 Hose Bottom 239D to 669788 Less plastic expansion tank	£6.65 (exc VAT)	- +
19	VPE4096	VPE4096 - Hose Bypass	£3.87 (exc VAT)	- +
20	VPE3604	VPE3604 Radiator Drain Tap 1/4 BSP 1/4" PTF	£4.97 (exc VAT)	- +
21	VPD5203	VPD5203 - Oil cooler 4239D Please refer to the photograph for identification	£153.87 (exc VAT)	- +
