Cylinder head

Cylinder head

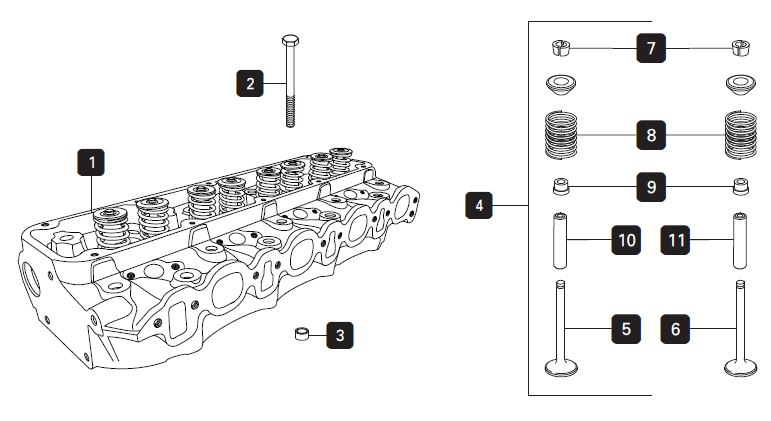

Exploded View Number	Code	Image	Description	Price	Quantity
1	VPA3052		VPA3052 Cylinder Head	£944.09 (exc VAT)	- +
1	VPA3924		VPA3924 - Head bolt kit Cylinder head stud kit / BSD444T	£296.59 (exc VAT)	- +
2	VPA3925		VPA3925 - Engine Block Dowel Cylinder head dowel / BSD444T Straight dowel	£6.02 (exc VAT)	- +
4	VPA6022		VPA6022 - Valve train kit Standard Valve train kit / BSD444T from (01/08/87)	£85.41 (exc VAT)	- +
5	VPA1562		VPA1562 - Inlet valve +0.015in +0.015" BSD444T Use with Headland piston	£8.30 (exc VAT)	- +
5	VPA1512		VPA1512 - Inlet valve +0.015in +0.015" BSD444T Use with non Headland piston	£8.96 (exc VAT)	- +
5	VPA1511		VPA1511 - Inlet valve +0.003in +0.003" BSD444T Use with non Headland piston	£4.57 (exc VAT)	- +
5	VPA1560		VPA1560 - Inlet valve STD Standard - Use with Headland piston	£11.18 (exc VAT)	- +
5	VPA1510		VPA1510 Inlet valve STD Standard - Use with non Headland piston	£5.25 (exc VAT)	- +
6	VPA1502		VPA1502 - Exhaust valve +0.015in +0.015" BSD444T Use with non Headland piston	£10.93 (exc VAT)	- +
6	VPA1572		VPA1572 - Exhaust valve +0.015in +0.015" BSD444T Use with Headland piston	£7.96 (exc VAT)	- +
6	VPA1571		VPA1571 - Exhaust valve +0.003in +0.003" BSD444T Use with Headland piston	£7.47 (exc VAT)	- +
6	VPA1501		VPA1501 - Exhaust valve +0.003in +0.003" BSD444T Use with non Headland piston	£8.11 (exc VAT)	- +
6	VPA1570		VPA1570 - Exhaust valve STD Standard Use with Headland piston	£8.93 (exc VAT)	- +
6	VPA1500		VPA1500 - Exhaust valve STD Standard Use with non Headland piston	£5.21 (exc VAT)	- +
7	VPA2302		VPA2302 Valve Collet Pair	£0.63 (exc VAT)	- +
8	VPA2010		VPA2010 - Valve Spring Outer Outer valve spring / BSD444T to (30/09/91)	£3.13 (exc VAT)	- +
9	VPA2203		VPA2203 -Exhaust Valve Seal BSD444T Exhaust	£0.32 (exc VAT)	- +
9	VPA2202		VPA2202 - Inlet Valve Seal BSD444T to (30/09/91) Inlet	£0.45 (exc VAT)	- +
