Hub Carrier

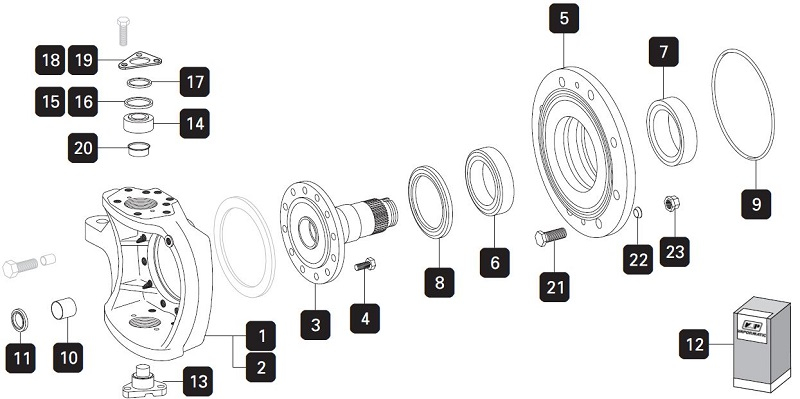

Exploded View Number	Code	Description	Price	Quantity
1	VPR0509	VPR0509 - LH hub carrier APL335 to (31/03/85)	£1755.60 (exc VAT)	- +
1	VPR0412	LH hub carrier APL345	£1402.24 (exc VAT)	- +
1	VPR0404	VPR0404 - LH hub carrier APL325 from 3381	£1705.49 (exc VAT)	- +
2	VPR0512	VPR0512 R/H Hub Carrier APL345	£1447.59 (exc VAT)	- +
2	VPR0409	VPR0409 - RH hub carrier APL335 to (31/03/85)	£1542.32 (exc VAT)	- +
5	VPR0712	VPR0712 - Hub APL345	£570.25 (exc VAT)	- +
6,7	VPJ2530	VPJ2530 - Hub Inner Bearing Hub inner bearing / APL325, APL335	£46.88 (exc VAT)	- +
6,7	VPJ2513	VPJ2513 Hub Bearing Inner Hub inner bearing / APL345, CAR709	£43.00 (exc VAT)	- +
8	VPJ2918	VPJ2918 Oil Seal Hub seal / CAR709	£31.75 (exc VAT)	- +
8	VPJ2863	VPJ2863 - Hub Oil Seal Hub seal / APL325, APL335	£17.42 (exc VAT)	- +
8	VPJ2861	VPJ2861 - Hub Oil Seal Hub seal / APL345	£33.25 (exc VAT)	- +
9	VFE1083	VFE1083 - O-Ring Planetary O ring / APL345	£1.47 (exc VAT)	- +
9	VFE1076	VFE1076 - Planetary O-Ring Planetary O ring / APL325, APL335	£1.70 (exc VAT)	- +
10	VPJ2665	VPJ2665 - Drive Shaft Bush Bush APL335, APL345	£9.36 (exc VAT)	- +
10	VPJ2666	VPJ2666 - Drive Shaft Bush Bush APL345	£11.75 (exc VAT)	- +
10	VPJ2657	VPJ2657 - Driveshaft Bush Bush CAR709	£5.87 (exc VAT)	- +
10	VPJ2663	VPJ2663 - Driveshaft Bush Bush APL325	£12.70 (exc VAT)	- +
11	VPJ2912	VPJ2912 - Drive Shaft Oil Seal Driveshaft oil seal / APL325	£6.87 (exc VAT)	- +
11	VPJ2911	VPJ2911 - Drive Shaft Oil Seal Driveshaft oil seal / APL335, APL345	£7.66 (exc VAT)	- +
11	VPJ2905	VPJ2905 Oil Seal Driveshaft oil seal / CAR709	£7.27 (exc VAT)	- +
12	VPJ7935	VPJ7935 - Pivot Pin Kit APL335	£66.65 (exc VAT)	- +
12	VPJ7934	VPJ7934 - Pivot Pin Kit APL325	£71.89 (exc VAT)	- +
13	VPJ7743	VPJ7743 - Hub Pivot Pin Hub pin APL325	£46.39 (exc VAT)	- +
13	VPJ7744	VPJ7744 - Hub Pin Hub pin APL335	£49.82 (exc VAT)	- +
13	VPJ7759	VPJ7759 - Hub Pin Hub pin APL345	£38.49 (exc VAT)	- +
13	VPJ7975	VPJ7975 Pivot Pin Pivot pin CAR709	£78.07 (exc VAT)	- +
14	VLD3600	VLD3600 - Bearing - 32205 Bearing 32205 APL335	£24.75 (exc VAT)	- +
14	VPJ2525	VPJ2525 - Pivot Pin Bearing Bearing APL345	£9.98 (exc VAT)	- +
14	VPJ2516	VPJ2516 - Pivot Pin Bearing Bearing APL325	£17.30 (exc VAT)	- +
14	VPJ2528	VPJ2528 Pivot Pin Bearing Bearing CAR709	£18.53 (exc VAT)	- +
15	VPJ2898	VPJ2898 Pivot Pin Oil Seal Oil seal CAR709	£6.74 (exc VAT)	- +
16	VFE1090	VFE1090 - O-ring Pivot pin o ring / APL345	£0.17 (exc VAT)	- +
16	VFE1082	VFE1082 - O-Ring Pivot pin o ring / APL335	£0.98 (exc VAT)	- +
16	VFE1077	VFE1077 - Pivot Pin O-Ring CNH Pivot pin o ring / APL335	£0.69 (exc VAT)	- +
17	VPJ2965	VPJ2965 - Pivot Pin O Ring Retainer Pivot pin O ring retainer / APL325	£1.64 (exc VAT)	- +
17	VPJ2962	VPJ2962 - O-Ring Retainer Pivot pin O ring retainer / APL335	£1.33 (exc VAT)	- +
17	VPJ2960	VPJ2960 - Pivot Pin Retainer O Ring Pivot pin O ring retainer / APL345	£1.61 (exc VAT)	- +
18	VPR3289	VPR3289 - Shim 0.60mm Shim 0.60mm APL335, APL345 0.60mm thickness	£13.22 (exc VAT)	- +
18	VPR3286	VPR3286 - Shim - 1.40mm Shim 1.40mm APL335, APL345 1.40mm thickness	£5.61 (exc VAT)	- +
18	VPR3260	VPR3260 - Shim 0.80mm Shim 0.80mm APL335, APL345 0.80mm thickness 1.60mm thickness	£5.94 (exc VAT)	- +
18	VPJ7955	VPJ7955 Pivot Pin Shim 0.10mm Pivot pin shim CAR709 0.10mm thickness	£1.10 (exc VAT)	- +
18	VPJ7956	VPJ7956 Pivot Pin Shim 0.19mm Pivot pin shim CAR709 0.19mm thickness	£1.68 (exc VAT)	- +
18	VPJ7951	VPJ7951 - Pivot Pin Shim 0.35mm Pivot pin shim CAR709 0.35mm thickness	£2.40 (exc VAT)	- +
20	VPJ7926	VPJ7926 - Pivot Pin Core Plug Pivot pin core plug / APL325	£6.64 (exc VAT)	- +
20	VPJ2961	VPJ2961 - Core Plug Pivot pin core plug / APL335	£2.34 (exc VAT)	- +
20	VPJ1481	VPJ1481 - Pivot Pin Core Plug Pivot pin core plug / APL345	£6.99 (exc VAT)	- +
22	VPR5422	VPR5422 - Wheel Washer 18mm	£2.98 (exc VAT)	- +
