PTO

PTO

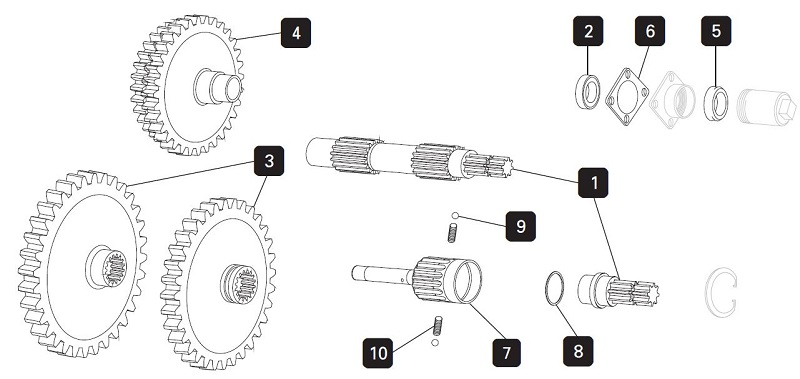

Exploded View Number Code Image Description Price Quantity
1 S.65966 S.65966 PTO Shaft 1000 RPM 2 Speed Shiftable S.65966 PTO Shaft 1000 RPM 2 Speed Shiftable £77.60 (exc VAT)
-
+
1 VPH4061 VPH4061 - PTO Shaft Assembly 540 rpm VPH4061 - PTO Shaft Assembly 540 rpm
540 rpm Two speed
 £66.12 (exc VAT)
-
+
1 TVH/50530200 TVH/50530200 PTO Shaft 1000 RPM Single Speed TVH/50530200 PTO Shaft 1000 RPM Single Speed £70.47 (exc VAT)
-
+
1 TVH/50506101 TVH/50506101 PTO Shaft 540 RPM 6/8 Spline TVH/50506101 PTO Shaft 540 RPM 6/8 Spline £86.39 (exc VAT)
-
+
2 VPH4240 VPH4240 PTO Shaft Outer Bearing VPH4240 PTO Shaft Outer Bearing £24.52 (exc VAT)
-
+
3 TVH/50530198 TVH/50530198 PTO Drive Gear 228.8mm OD 84 Teeth TVH/50530198 PTO Drive Gear 228.8mm OD 84 Teeth
1000 rpm 84 teeth Non-shiftable PTO
 £299.37 (exc VAT)
-
+
3 S.65967 S.65967 Transmission PTO Gear 263mm OD S.65967 Transmission PTO Gear 263mm OD £119.14 (exc VAT)
-
+
4 VPH5022 VPH5022 IPTO Drive Gear VPH5022 IPTO Drive Gear
Two speed Non-shiftable PTO
 £56.23 (exc VAT)
-
+
5 VPH1412 VPH1412 - Oil Seal VPH1412 - Oil Seal £2.70 (exc VAT)
-
+
5 VPH4228 VPH4228 PTO Oil Seal VPH4228 PTO Oil Seal £20.93 (exc VAT)
-
+
7 VPH4065 VPH4065 Inner Shaft VPH4065 Inner Shaft
Hollow shaft / PTO Inner hollow shaft
 £186.50 (exc VAT)
-
+
8 VFE1144 VFE1144 - Drop Box Output Housing O Ring VFE1144 - Drop Box Output Housing O Ring
Shaft Retainer O Ring
 £7.14 (exc VAT)
-
+
8 VPJ5230 VPJ5230 Ball Bearing VPJ5230 Ball Bearing
8 Speed non synchro, Electro shift
 £0.10 (exc VAT)
-
+
Not shown S.65959 S.65959 PTO Shaft Carrier Sleeve Hub S.65959 PTO Shaft Carrier Sleeve Hub £36.62 (exc VAT)
-
+
Not shown VPJ7041 VPJ7041 PTO Hub Brake Band VPJ7041 PTO Hub Brake Band £21.51 (exc VAT)
-
+
Not shown VPH5019 VPH5019 PTO Ring VPH5019 PTO Ring
Mechanical / Electric
 £2.06 (exc VAT)
-
+
Not shown TVH/50530203 TVH/50530203 PTO O-Ring 55 x 3.4mm TVH/50530203 PTO O-Ring 55 x 3.4mm
Mechanical / Standard Pump S & SL
 £0.59 (exc VAT)
-
+
Not shown TVH/50530204 TVH/50530204 Piston O-Ring Seal TVH/50530204 Piston O-Ring Seal
Mechanical / Standard Pump S & SL
 £0.96 (exc VAT)
-
+
Not shown 43117 43117 Lever Pin (IPTO Brake Band) 43117 Lever Pin (IPTO Brake Band) £37.20 (exc VAT)
-
+
Not shown 409724 409724 PTO Solenoid Wire Assembly Ford 409724 PTO Solenoid Wire Assembly Ford £33.42 (exc VAT)
-
+
Not shown S.65530 S.65530 O-Ring Axle Housing 331.45mm ID S.65530 O-Ring Axle Housing 331.45mm ID £1.65 (exc VAT)
-
+
