Planetary Reduction

Planetary Reduction

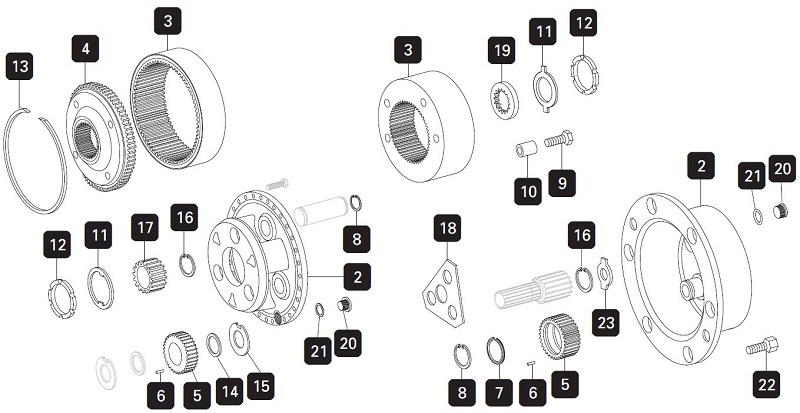

Exploded View Number Code Image Description Price Quantity
1 VPJ7927 VPJ7927 - Planetary Kit 4WD VPJ7927 - Planetary Kit 4WD
APL325
 £699.12 (exc VAT)
-
+
2 VPR6073 VPR6073 - Planetary housing VPR6073 - Planetary housing
Carrier/ APL345, APL350
 £1451.06 (exc VAT)
-
+
2 VPR6067 VPR6067 - Planetary housing VPR6067 - Planetary housing
Carrier / APL325
 £1314.21 (exc VAT)
-
+
3 VPJ7849 VPJ7849 - Ring Gear VPJ7849 - Ring Gear
Ring gear / APL325
 £308.58 (exc VAT)
-
+
5 VPJ7852 VPJ7852 - Planetary Gear VPJ7852 - Planetary Gear
Planetary gear / APL325
 £53.95 (exc VAT)
-
+
5 VPJ7847 VPJ7847 - Planetary Gear VPJ7847 - Planetary Gear
Planetary gear / APL345, APL350
 £68.87 (exc VAT)
-
+
6 VPJ2550 VPJ2550 - Pinion Bearing VPJ2550 - Pinion Bearing
APL325, APL345, APL350
 £23.04 (exc VAT)
-
+
7 VPJ7828 VPJ7828 Angle Ring Internal Circlip VPJ7828 Angle Ring Internal Circlip
APL325, APL345, APL350
 £4.80 (exc VAT)
-
+
8 VPJ7837 VPJ7837 - Planetary Gear Circlip VPJ7837 - Planetary Gear Circlip
APL325, APL345, APL350
 £3.25 (exc VAT)
-
+
9 VPJ7855 VPJ7855 - Ring Gear Bolt VPJ7855 - Ring Gear Bolt
Special bolt APL32
 £6.44 (exc VAT)
-
+
10 VPJ7918 VPJ7918 Ring Gear Dowel VPJ7918 Ring Gear Dowel
APL325, APL345, APL350
 £6.27 (exc VAT)
-
+
16 VPR4004 VPR4004 Wheel Shaft Circlip VPR4004 Wheel Shaft Circlip
APL325
 £3.51 (exc VAT)
-
+
19 VPJ7922 VPJ7922 - Sun Gear Thrust Washer VPJ7922 - Sun Gear Thrust Washer
Sun gear thrust washer / APL325 Inner thrust washer
 £19.29 (exc VAT)
-
+
19 VPJ7877 VPJ7877 Thrust Washer Outer VPJ7877 Thrust Washer Outer
Sun gear thrust washer/ APL345 With outer tabs
 £15.51 (exc VAT)
-
+
19 VPJ7862 VPJ7862 Sun gear Shim outer thrust washer VPJ7862 Sun gear Shim outer thrust washer
Sun gear thrust washer/ APL325 Outer thrust washer
 £13.10 (exc VAT)
-
+
20 VPR2009 VPR2009 Drain plug VPR2009 Drain plug
APL345, APL350
 £7.66 (exc VAT)
-
+
20 VPR2007 VPR2007 - Drain Plug VPR2007 - Drain Plug
Level plug / APL325
 £6.71 (exc VAT)
-
+
21 VPR2201 O ring O ring
Drain / level plug seal / APL345, APL350
 £3.43 (exc VAT)
-
+
23 VPR6164 VPR6164 - Thrust washer 3.0mm VPR6164 - Thrust washer 3.0mm
3.0mm APL345, APL350 3.00mm thickness
 £11.75 (exc VAT)
-
+
23 VPR6160 VPR6160 - Thrust washer 2.0mm VPR6160 - Thrust washer 2.0mm
2.0mm APL325 2.00mm thickness
 £4.99 (exc VAT)
-
+
23 VPJ7879 VPJ7879 - Thrust washer 2mm VPJ7879 - Thrust washer 2mm
APL345, APL350 2.00mm thickness
 £19.73 (exc VAT)
-
+
23 VPR1252 VPR1252 - Thrust washer 1.5mm VPR1252 - Thrust washer 1.5mm
APL345, APL350 1.50mm thickness
 £11.75 (exc VAT)
-
+
