Planetary Reduction

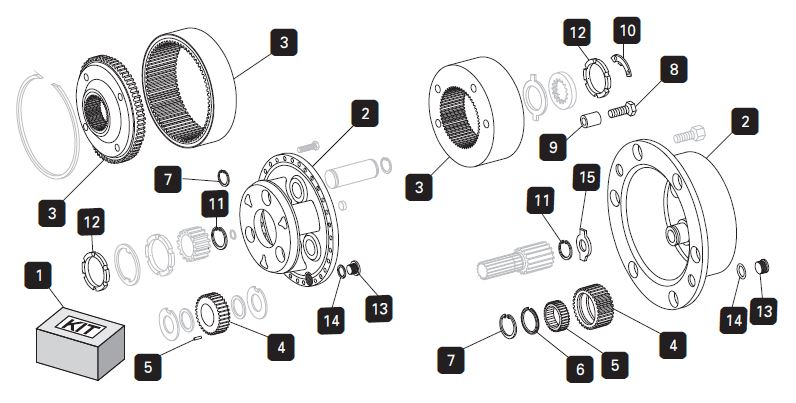

Exploded View Number	Code	Description	Price	Quantity
2	VPR6067	VPR6067 - Planetary housing Carrier APL325	£1314.21 (exc VAT)	- +
2	VPR6066	VPR6066 - Planetary housing Carrier APL315	£929.93 (exc VAT)	- +
3	VPR6009	VPR6009 Gear ring Ring gear APL315	£747.47 (exc VAT)	- +
3	VPJ7849	VPJ7849 - Ring Gear Ring gear APL325 114 teeth	£308.58 (exc VAT)	- +
4	VPJ7852	VPJ7852 - Planetary Gear Planetary gear APL325	£53.95 (exc VAT)	- +
5	VPJ2550	VPJ2550 - Pinion Bearing Pinion bearing APL1351, APL325 to 621999	£23.04 (exc VAT)	- +
6	VPJ7828	VPJ7828 Angle Ring Internal Circlip APL325	£4.80 (exc VAT)	- +
7	VPJ7837	VPJ7837 - Planetary Gear Circlip Planetary gear circlip APL325	£3.25 (exc VAT)	- +
8	VPJ7855	VPJ7855 - Ring Gear Bolt Ring gear bolt APL315, APL325 M10 x 45mm	£6.44 (exc VAT)	- +
9	VPJ7918	VPJ7918 Ring Gear Dowel Ring gear dowel APL315, APL325	£6.27 (exc VAT)	- +
11	VPR4004	VPR4004 Wheel Shaft Circlip Wheel shaft circlip APL315, APL325	£3.51 (exc VAT)	- +
12	VPJ7922	VPJ7922 - Sun Gear Thrust Washer Sun gear thrust washer APL325 from 750789	£19.29 (exc VAT)	- +
12	VPJ7862	VPJ7862 Sun gear Shim outer thrust washer Sun gear thrust washer APL315 to 750788	£13.10 (exc VAT)	- +
15	VPR6160	VPR6160 - Thrust washer 2.0mm End float thrust washer APL315, APL325 2.0mm	£4.99 (exc VAT)	- +
15	VPJ7873	VPJ7873 - End Float Thrust Washer 1.5mm End float thrust washer APL315, APL325 1.5mm	£7.42 (exc VAT)	- +
